INTRUSION ALARM
Intrusion Alarm System
The oldest form of security system – commonly known as Burglar Alarm – CCTV and Door Access were rarely heard of then. Needless to say, the early security systems installed by us then in 1979 were Burglar Alarm.
It is typically consisted of a control panel, door/window contact, motion detector, panic button, siren/strode and arm/disarm keypad. Violation is detected via opening of doors or windows or triggering of motion detector. When system is ON or ARM, the control panel will activate connected loud siren/strode device and send a PUSH NOTIFICATION or SMS Alert to selected persons.
For high security sites like bank, jewellery and utilities, the system needs to be monitored by Central Monitoring Station (CMS). The CMS Operator will inform key-holders (contact person for alarm activation) and the Police of alarm activation for necessary response.

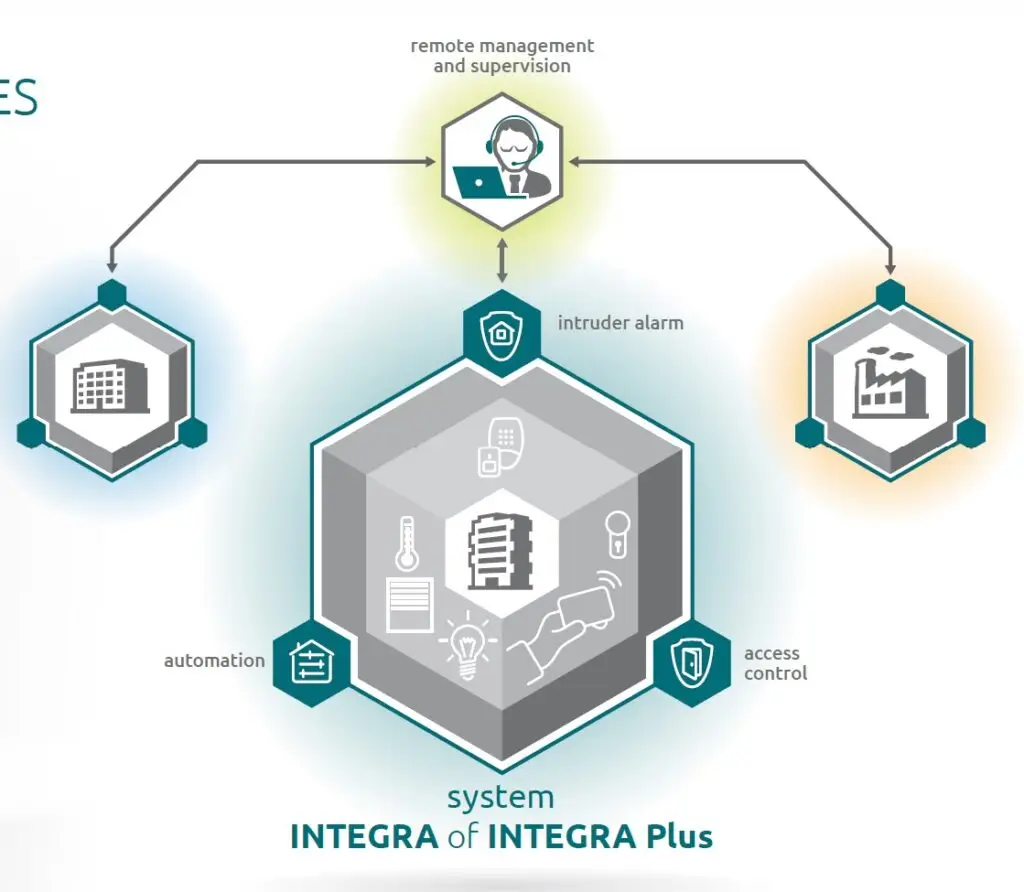

Most intrusion alarm system now offer some form of automation control and function like turning on/off lights when motion is detected, garage shutter, etcs. Ace offer system that can integrate with KNX system.
Ace Electronic use SATEL products for Intrusion Alarm and is the exclusive distributor in Singapore since 2016.
Ace Electronic offer a full suite of systems to cater to all requirement ranging from INTEGRA panel for big premises to VERSA panel for medium size system and PERFECTA panel for smaller size system.



Panel box

Integra 128 Plus 16/128 zones PCB

Integra 64 Plus
16/64 zones PCB

Integra 32
8/32 zones PCB

INT-E
8 zones expander

INT-0
8 outputs expander

INT-KLCD
LCD Keypad

INT-KLFR
Keypad with Card Reader

INT-KSG
Touch Sensor Keypad

INT-TSI
Touch Screen Control

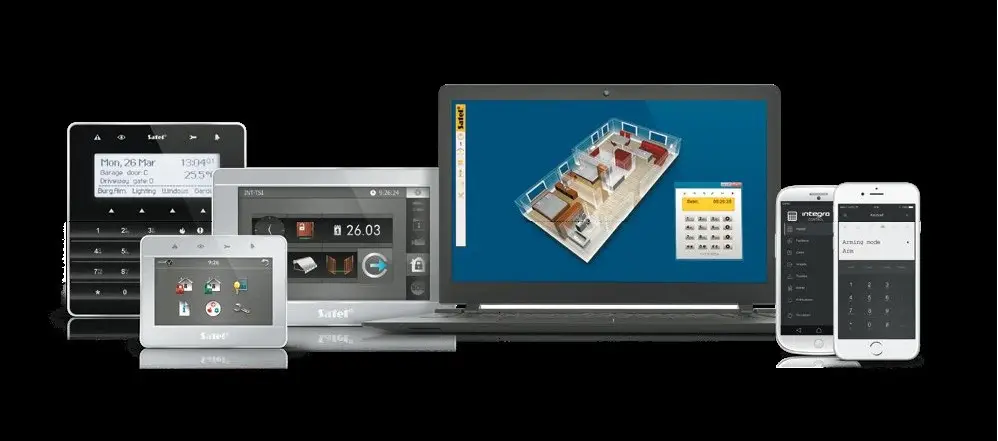

INTEGRA CONTROL
Mobile APP
Partition Keypad
Partition Keypad



Versa Plus LTE
5/30 zones TCP/IP LTE panel

Versa LCD Keypad

Versa LCDM /KWRL2 Keypad
VERSA
VERSA control panels are specially designed to for medium-size installations in apartments and small houses, as well as in small offices and commercial buildings.
The VERSA control panels can interface with devices connected to the system in a conventional manner (i.e. using a cable), as well as with those which use remote or radio communication. Such a solution makes it possible to create exactly the system that is needed in the protected building: wired or wireless, or a hybrid one, that combines the properties of wired and wireless systems. In addition, the VERSA series control panels can work using different arming modes, which enables operation of the system devices to be customized to the needs and demands of the system users.
VERSA use Ethm or GSM-GRPS module for Internet connection and for remote.

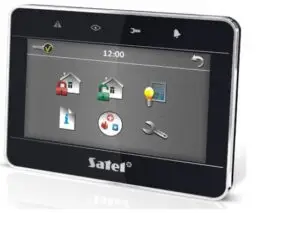

INT-TSG
Touch Screen Keypad

VERSA
CONTROL

Versa 5
5/30 zones
Control PCB

Versa 10
10/30 zone
Control PCB

Versa 15
15/30 zones
Control PCB



Perfecta 32-WRL-LTE 8/32 zones Panel with wireless controller

PRF LCD/WRL Keypad Control, KEYFOB Control & PERFECTA CONTROL

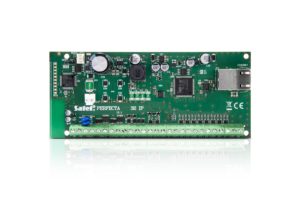

Perfecta IP-32 8/32 zones TCP/IP panel


INT-RX-5 Keyfob Receiver
PERFECTA
Design of the PERFECTA control panel allows you to build a wired or wireless system, offering all the functionality needed in small and medium-sized buildings. Both zone expanders and output expanders can be connected to the control panel, thus increasing the number of supported devices. It is a simple and reliable way for a quick expansion of the system.
Simple configuration, intuitive operation and easy control – these features characterize an alarm system based on the PERFECTA control panels. PERFECTA 32-IP/LTE WRL, is design makes it possible to create a wireless or hybrid installation.
PERFECTA use IP or GSM/GPRS connection for remote
monitoring and control.

MPD-300
PIR Detector

MPD-310
PIR Detector

MMD-300
Magnetic Contact

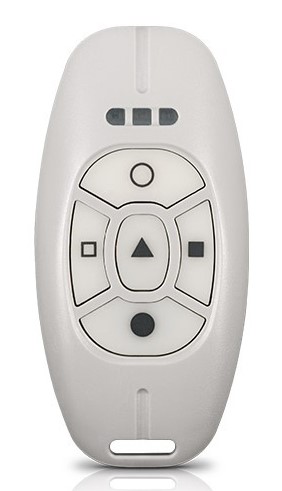

MPT-350
Keyfob

MFD300
Flood detector



ACU-220 System controller

ACU-280 System controller

ARF-200 Signal tester

ARU-100 Signal retransmitter

ACX-220 Wireless expansion

AXD-200 Mulitpurpose detector

AMPD-250 Dual Tech Motion Detector

AOD-210 Outdoor Dual-Tech Motion Detector

AMPD-260 Outdoor Dual-Tech Curtain Motion Detector

ASD-200 Smoke & Heat Detector

APB Panic Button

APT-200 Keyfob

Ethm-1 plus Ethernet module

INT-GSM LTE

GPRS-A LTE

GSM-X LTE

GSM-X PSTN

GSM-X ETH

Grey Dual-Tech Motion Detector

Slim PIR, Dual- Tech Motion Detector

Opal-Plus Outdoor Dual- Tech Motion Detector

Agate Outdoor DualTech Curtain Motion Detector

Aqual-Ring PIR

TSD-1 Smoke & Heat Detector

FD-1 Water Flood Detector

TD-1 Temperature Detector

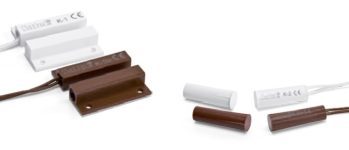

Magnetic Contact

ASP-215R Wirwless Indoor Siren
